Shaped Cores

  • Characteristics: More than 10 different shaped cores and combinations
    Special shaped cores can increase storage capacity
    Suitable for small dimensions, large currents designs
    Suitable for high difficulty winding and assembly type inductors
  • Applications: Solar cell inverters, Boost inductors,
    Flyback transformers,
    Output chokes for SMPS,
    Small dimension DC/DC converters,
    PFC, AC Reactors for inverters.

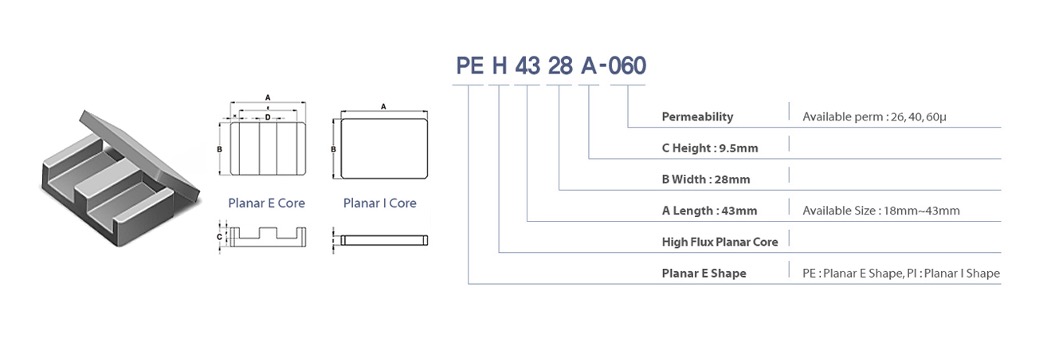

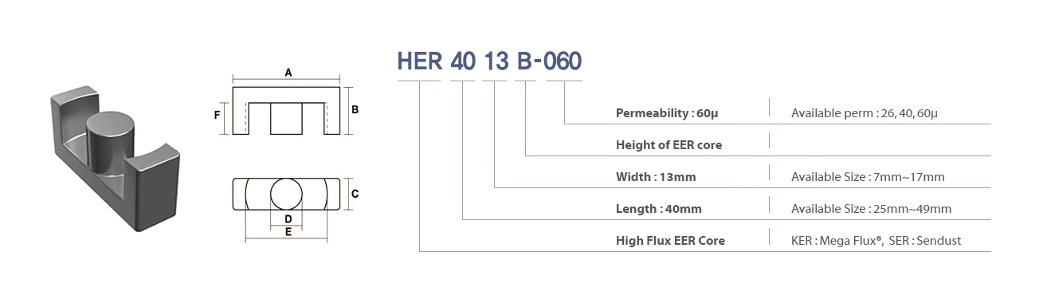

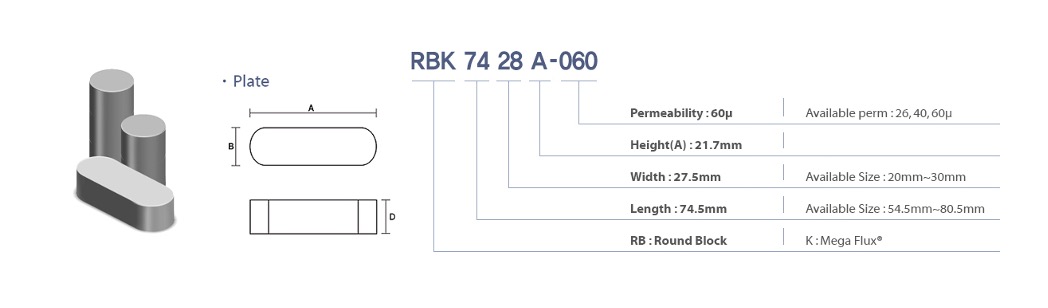

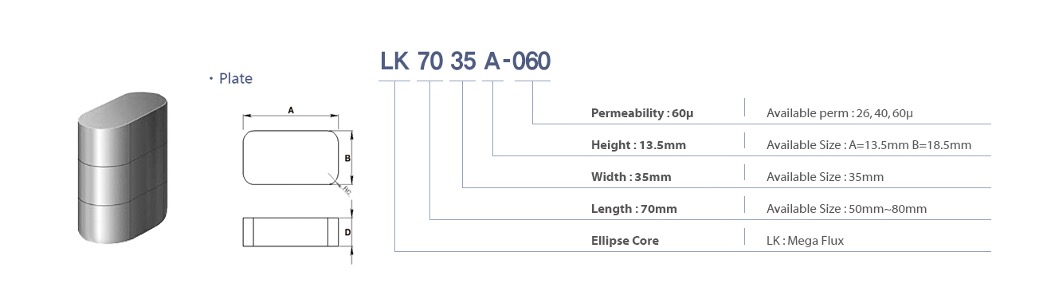

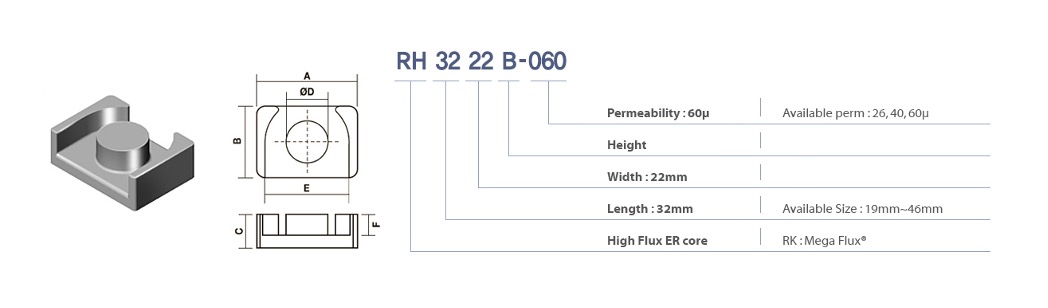

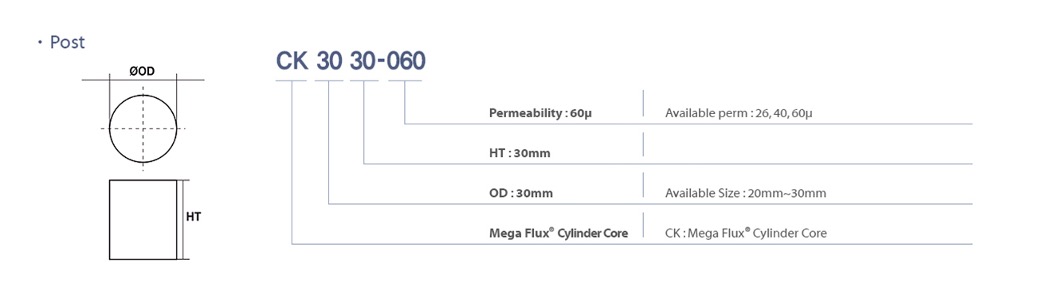

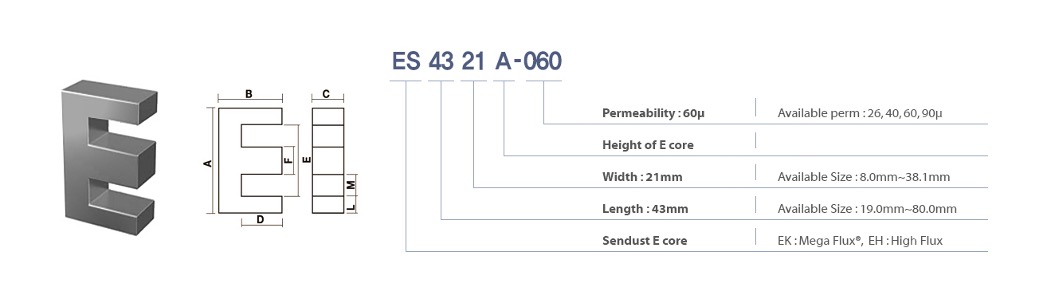

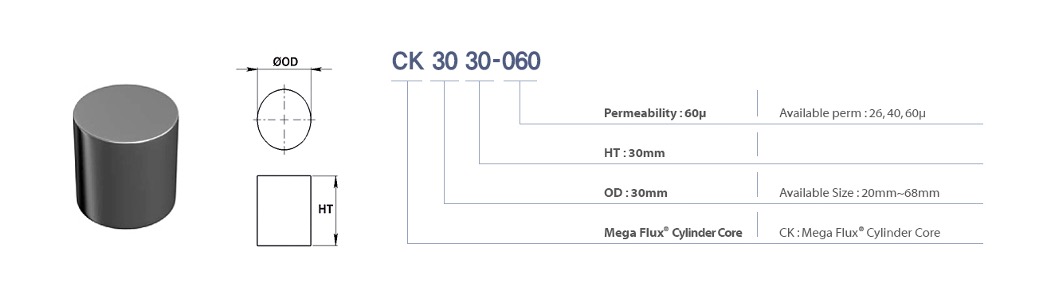

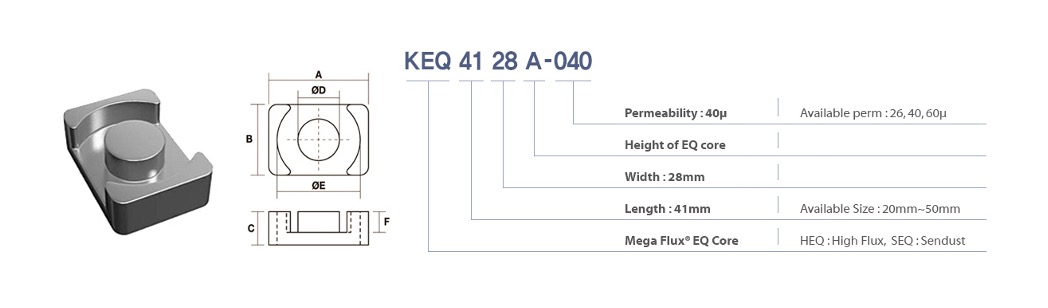

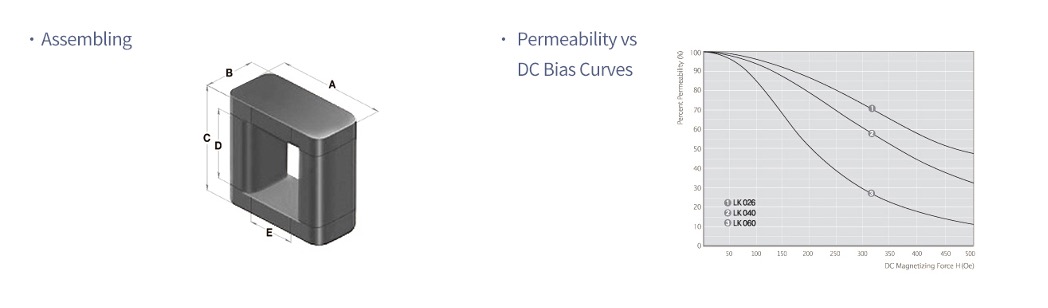

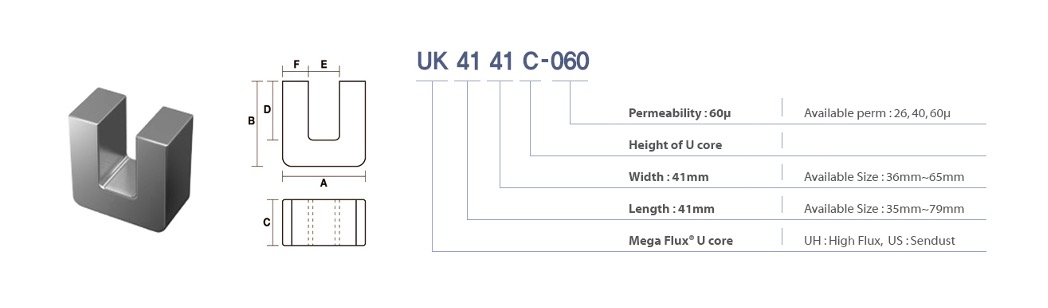

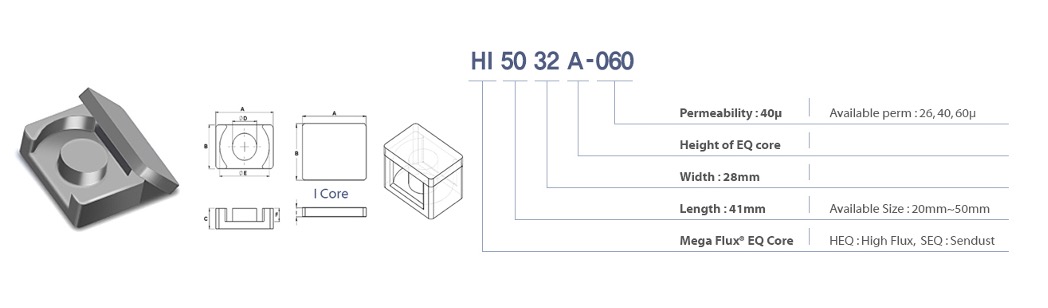

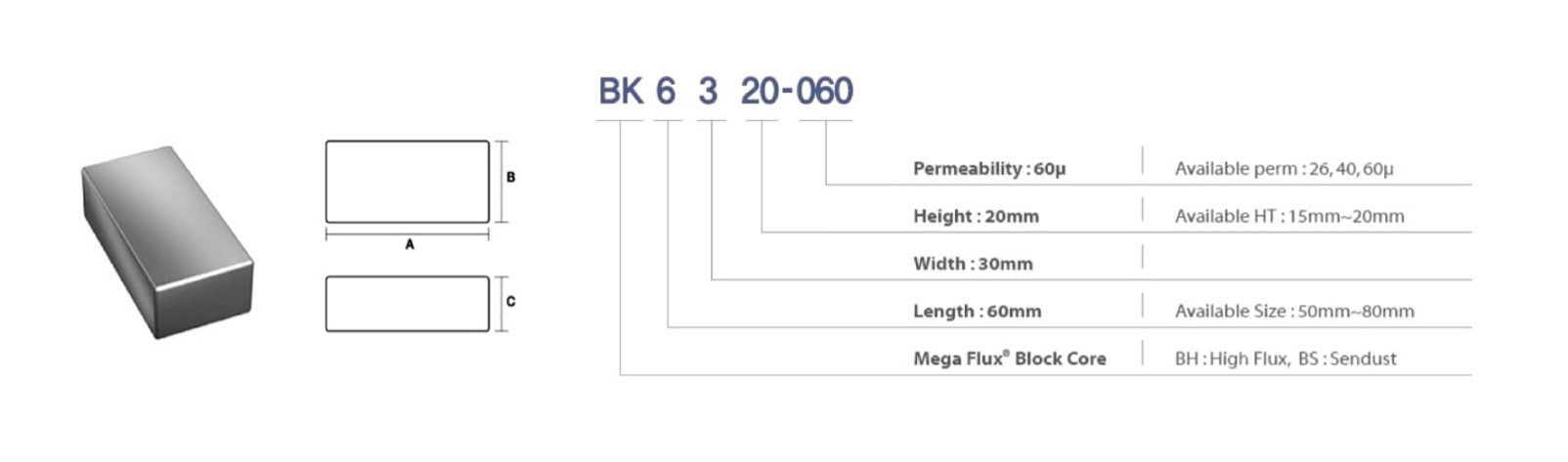

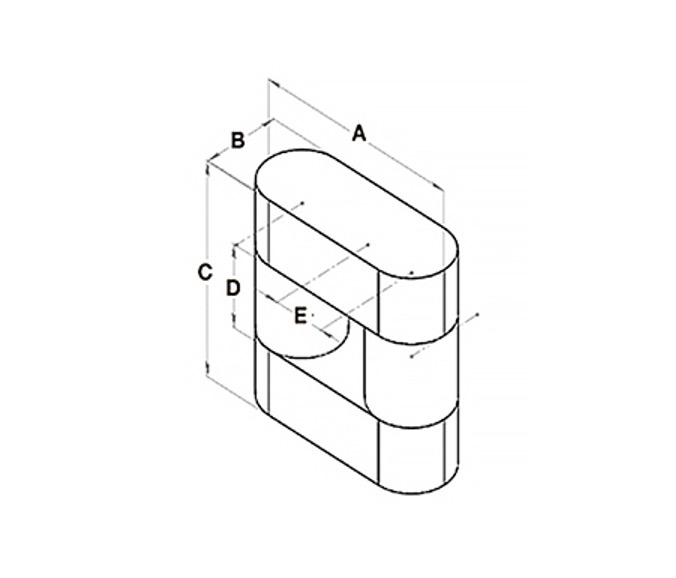

Block Cores
Part No. Dimensions (mm) Path length (cm) Cross Section Area (㎠) 4PCS AL value (nH/N²)±12%
A
Length
B
Width
C
Height
026μ 040μ 060μ
BK531550.5±0.5 30.3±0.3 15±0.2 18.71 4.5 95 121 181
BK532050.5±0.5 30.3±0.3 20±0.2 18.28 6 130 165 247
BK631560.5±0.5 30.3±0.3 15±0.2 22.71 4.5 79 100 149
BK632060.5±0.5 30.3±0.3 20±0.2 22.28 6 107 135 203
BK731570.5±0.5 30.3±0.3 15±0.2 26.71 4.5 67 85 127
BK732070.5±0.5 30.3±0.3 20±0.2 26.28 6 91 115 172
BK831580.5±0.5 30.3±0.3 15±0.2 30.71 4.5 58 74 110
BK832080.5±0.5 30.3±0.3 20±0.2 30.28 6 78 100 149
BK931590.5±0.5 30.3±0.3 15±0.2 34.71 4.5 51 65 98
BK932090.5±0.5 30.3±0.3 20±0.2 34.28 6 68 88 132
BK5020 50.5±0.5 20.3±0.3 20±0.2 18.28 4 87 110 165
BK6020 60.5±0.5 20.3±0.3 20±0.2 22.28 4 71 90 135
BK6020 60.5±0.5 20.3±0.3 25±0.2 21.85 5 91 115 173
BK7020 70.5±0.5 20.3±0.3 20±0.2 26.28 4 60 77 115
BK7020 70.5±0.5 20.3±0.3 25±0.2 25.85 5 77 97 146
BK8020 80.5±0.5 20.3±0.3 20±0.2 30.28 4 52 66 100
BK8020 80.5±0.5 20.3±0.3 25±0.2 29.85 5 66 84 126
